SG Light Tank 105mm / 120mm Gun Turret with Local IFV chassis Integration

Technology Breakthrough on Turret mounting onto Turret Cube Steel Structure Holder welded to bottom base plate of the light tank chassis



`

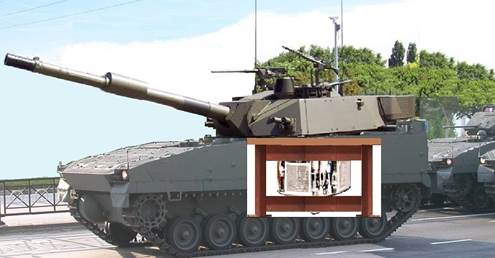

SG Light Tank 120mm Gun - Technology Breakthrough on turret mounting onto internal cube steel structure holder welded to bottom base plate of the local IFV chassis

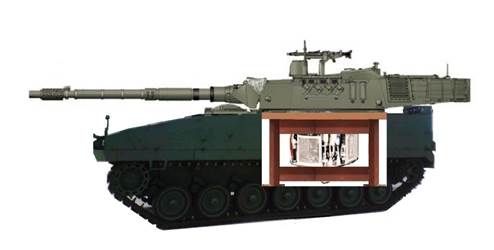

Cross-section of our Turret Cube Steel Structure Holder welded to the bottom base plate of Local IFV chassis

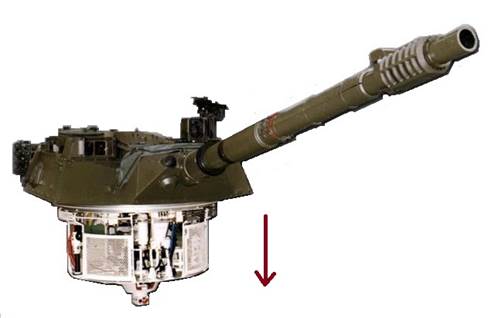

OTO MELARA 105mm / 120mm Gun Turret

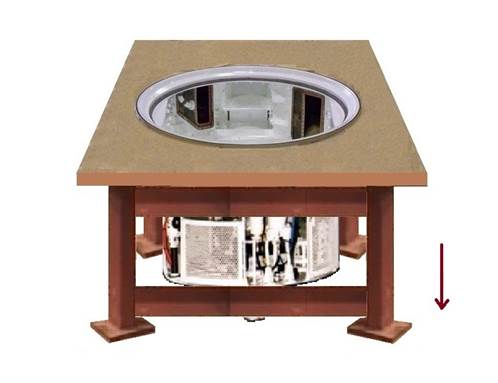

120mm Gun Turret Cube Steel Structural Holder

Technology Breakthrough – Turret Cube Steel Structural Holder

Selling Price US$200,000



Turret Cube Steel Structural Holder which house turret ring & main Gun turret with it four steel legs structure welded to bottom base plate of local IFV chassis to allow chassis to absorb the full recoil force during live firing

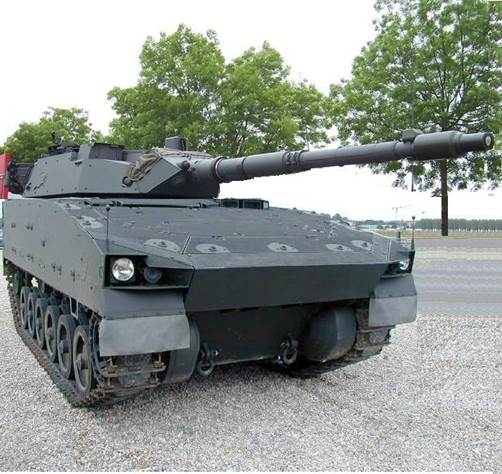

SG Light Tank 120mm Gun

SG Light Tank 120mm Gun (Weight 34 tons)

Chassis Hull length was lengthened by one extra suspension wheel



SG Light Tank 105mm Gun

SG Light Tank 105mm Gun (Weight 30 Tons)

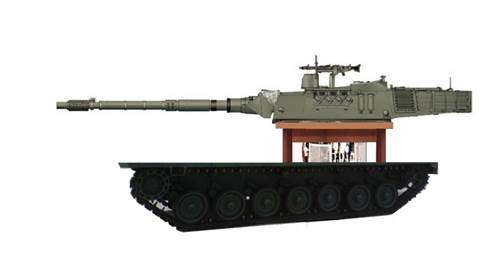

SG Light Tank 120mm Gun - Technology Breakthrough on turret mounting onto internal cube steel structure holder welded to bottom base plate of the local IFV chassis

The Bottom Base Chassis is made of Armour Steel, include engine, tracks & suspension Wheels (weight - 15 Tons exclude Turret)

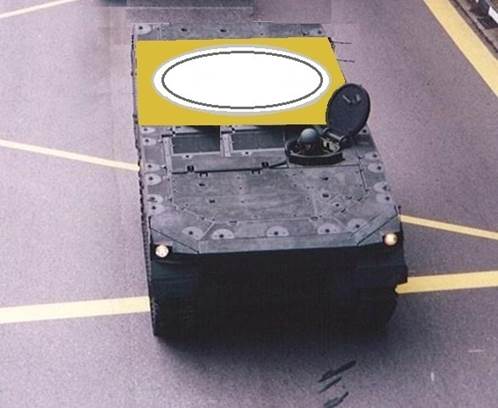

Local IFV chassis with internal turret cube steel structure holder inserted & welded onto bottom base plate of the chassis

Turret Cube Steel Structural Holder inserted & welded to local IFV chassis bottom base plate



Top Hatch & Side Body are made of German Composite Amour. Which is Hard enough to repel amour piercing shell but it was too weak to hold Turret Gun recoil force.

(Weight - 5 Tons) - Turret Cube Steel Structural Holder is use to strengthen the entire chassis turret holding capabilities.

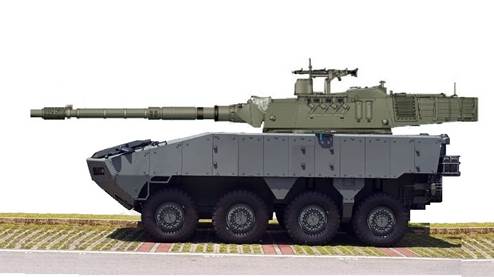

SG Tank Destroyer 120mm



Other ICV Chassis Application as SG Tank Destroyer 120mm (Weight 25 Tones)



SG Tank Destroyer 120mm  - Turret Gun are installed with the help of an Turret Cube Steel Structure bolted to the bottom plate of the ICV chassis.

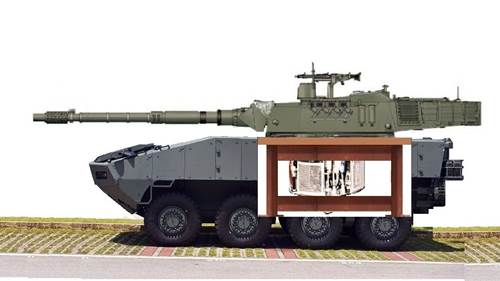

Cross-section of our Turret Cube Steel Structure Holder bolted or welded to the bottom base plate of local made ICV chassis as SG Tank Destroyer 120mm



SG Light Tank 120mm Gun - Technology Breakthrough on turret mounting onto internal turret cube steel structure holder welded to bottom base plate of the chassis

Cross-section of our Turret Cube Steel Structure Holder welded to the bottom base plate of local IFV chassis
